BESCHREIBUNG

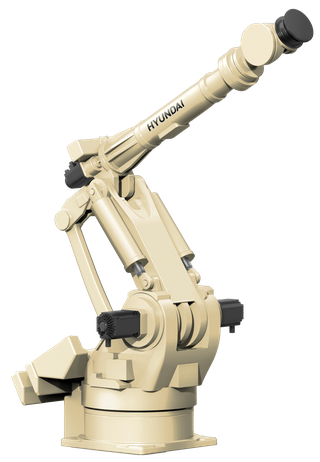

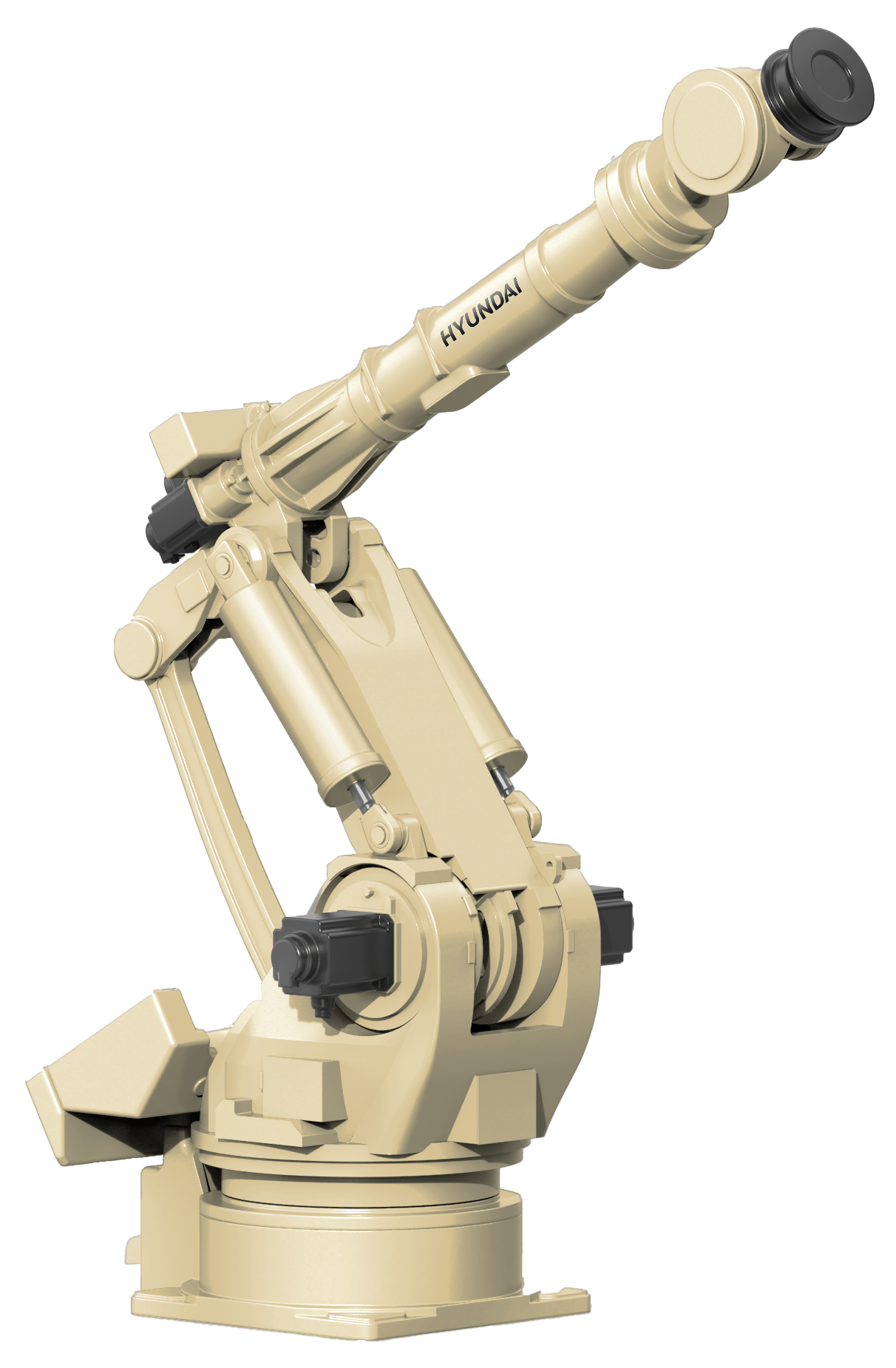

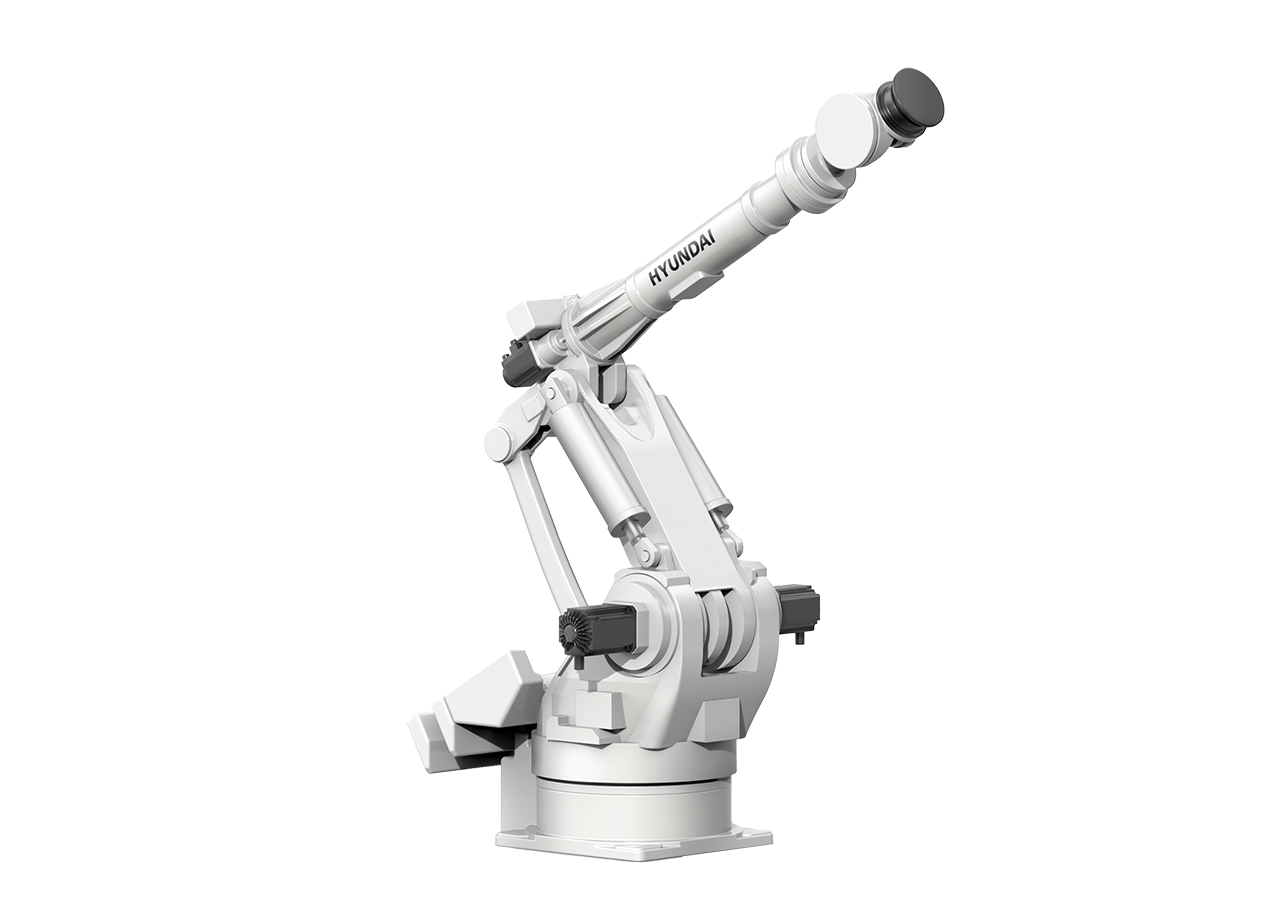

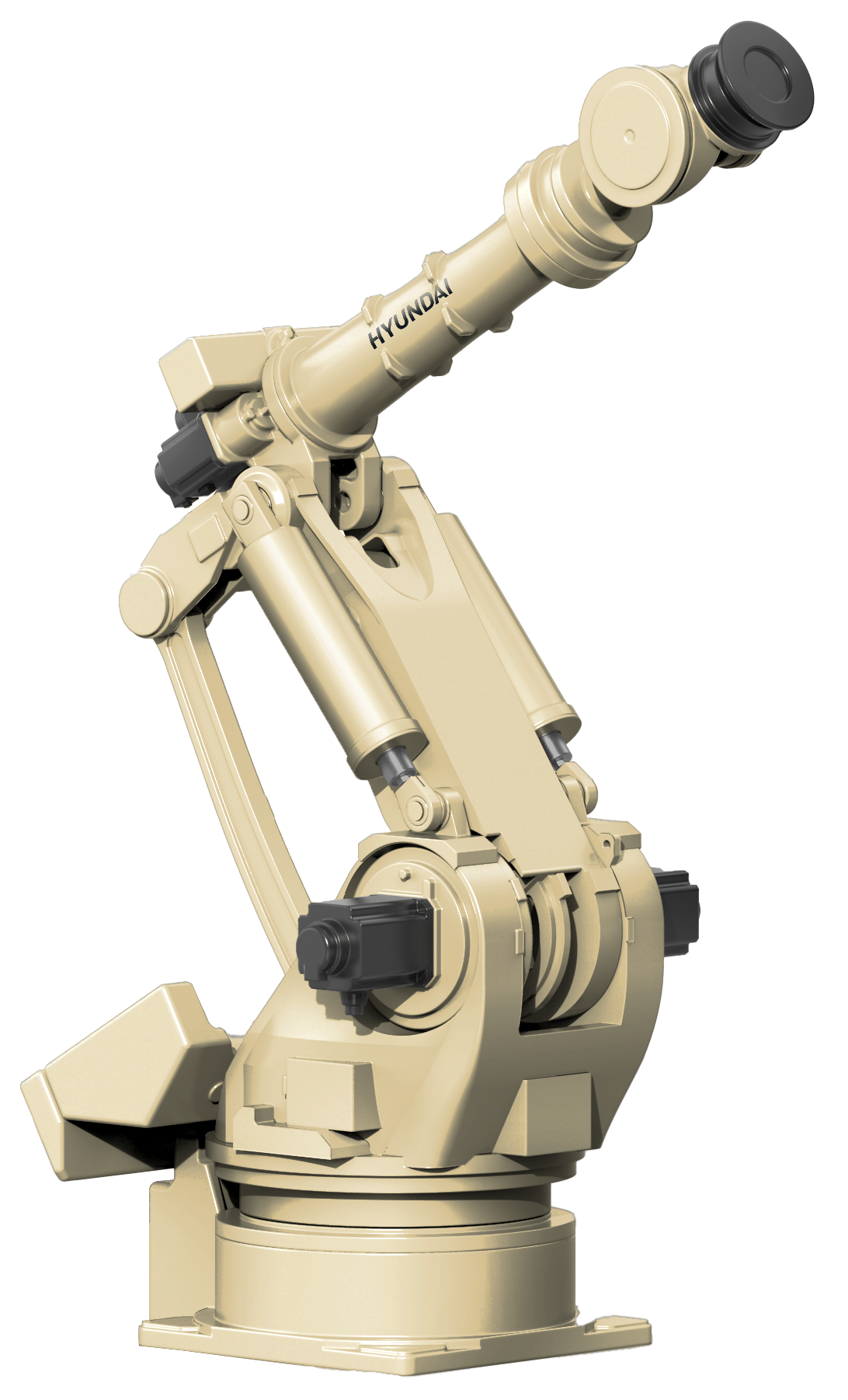

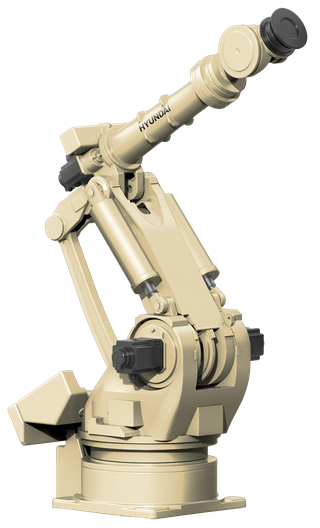

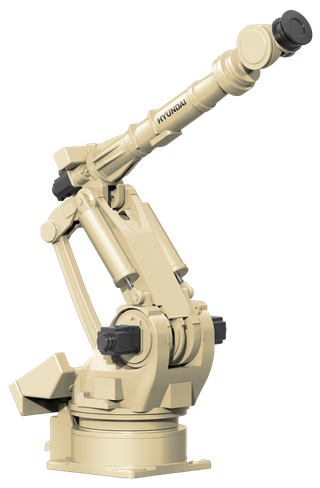

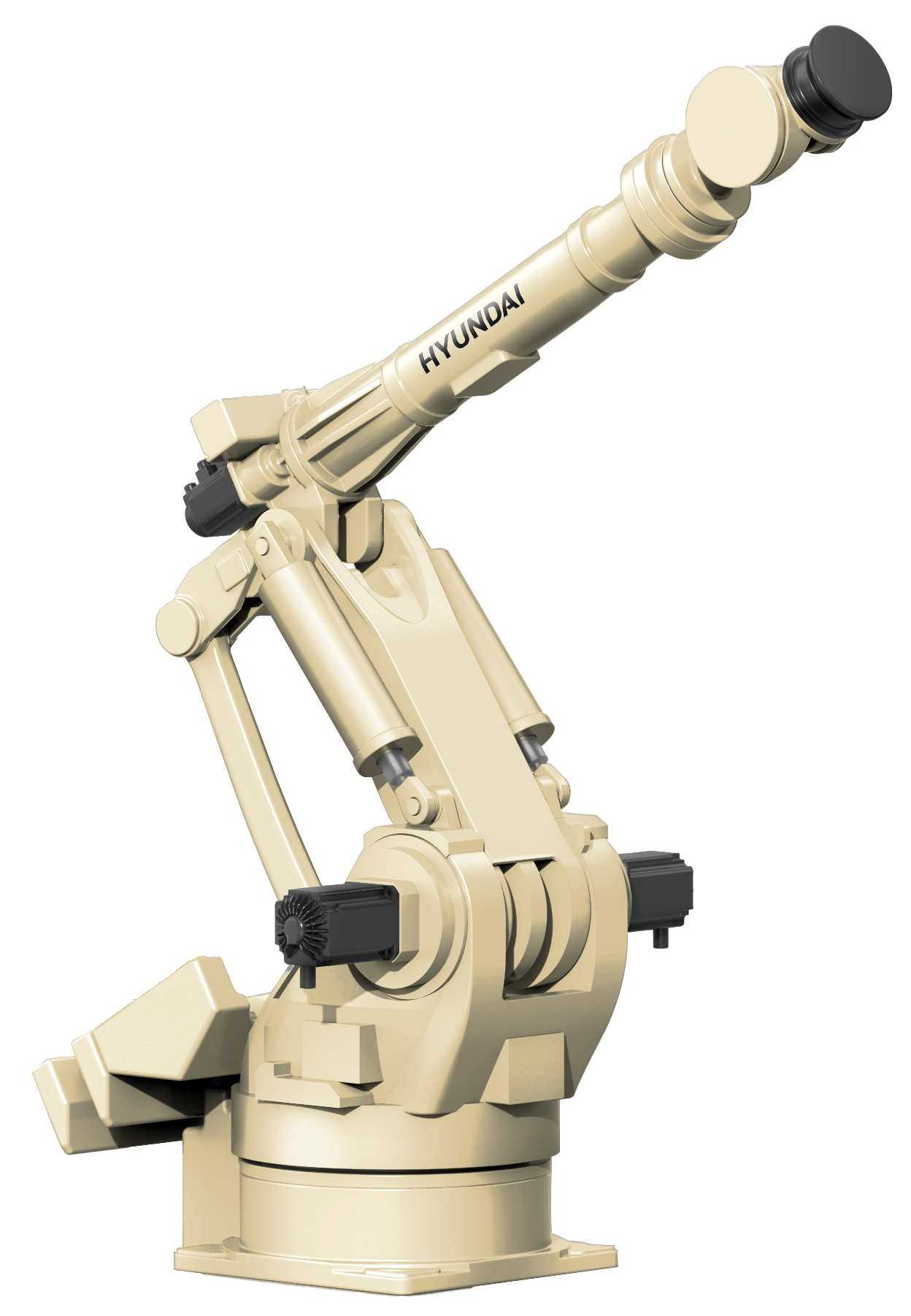

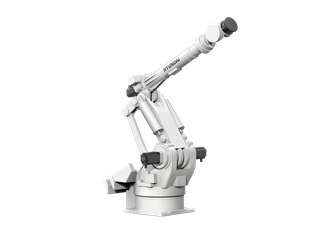

HDX400L-30 ist ein Industrial-Robot von Hyundai Robotics. Er ist für Montage, Palettieren ausgelegt. Eckdaten: 2740 kg, 400 kg Traglast, 3056 mm Reichweite, 6 Freiheitsgrade.
HDX400L-30 is a 6-axis industrial articulated robot manufactured by HD Hyundai Robotics. It has a rated payload of 400 kg and a maximum reach of 3056 mm, driven by AC Servo motors. Compatible controllers: Hi7-N80, Hi6-N80(HK), Hi5a-S80. Previously designated HX400L before HD Hyundai's catalogue renaming.
FUNKTIONEN
- 6-axis articulated configuration
- Rated payload 400 kg
- Maximum reach 3056 mm
- AC Servo drive
- Compatible controllers: Hi7-N80, Hi6-N80(HK), Hi5a-S80
- Manufacturer-listed applications: assembly, handling, machine tending, spot welding
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 2740 kg |
|---|---|
| Traglast | 400 kg |
| Reichweite | 3.06 m |
| Wiederholgenauigkeit | ±0.03 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 2740 kg |
|---|---|
| Traglast | 400 kg |
| Reichweite | 3.06 m |
| Wiederholgenauigkeit | ±0.03 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
Bilder
martti
martti
martti
martti
marttiBildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the HDX400L-30?
HDX400L-30 is a 6-axis industrial articulated robot manufactured by HD Hyundai Robotics. It has a rated payload of 400 kg and a maximum reach of 3056 mm, driven by AC Servo motors. Compatible controllers: Hi7-N80, Hi6-N80(HK), Hi5a-S80. Previously designated HX400L before HD Hyundai's catalogue renaming.
Who makes the HDX400L-30?
The HDX400L-30 is made by Hyundai Robotics, a robotics company based in South Korea.
How much does the HDX400L-30 cost?
Hyundai Robotics has not publicly announced pricing for the HDX400L-30. You can enquire through RobotAIGeek for current pricing.
What is the HDX400L-30 used for?
The HDX400L-30 is designed for montage and palettieren. It is used in bauwesen and fertigung settings.
What is the payload capacity of the HDX400L-30?
The HDX400L-30 has a payload capacity of 400 kg and a reach of 3.06 m.
How much does the HDX400L-30 weigh?
The HDX400L-30 weighs 2,740 kg.
How many degrees of freedom does the HDX400L-30 have?
The HDX400L-30 has 6 degrees of freedom.
