BESCHREIBUNG
EVO10L ist ein Industrial-Robot von Tianji Gento. Er ist für Montage, Materialhandhabung, Kommissionierung ausgelegt. Eckdaten: 77 kg, 10 kg Traglast, 1401 mm Reichweite, 6 Freiheitsgrade.

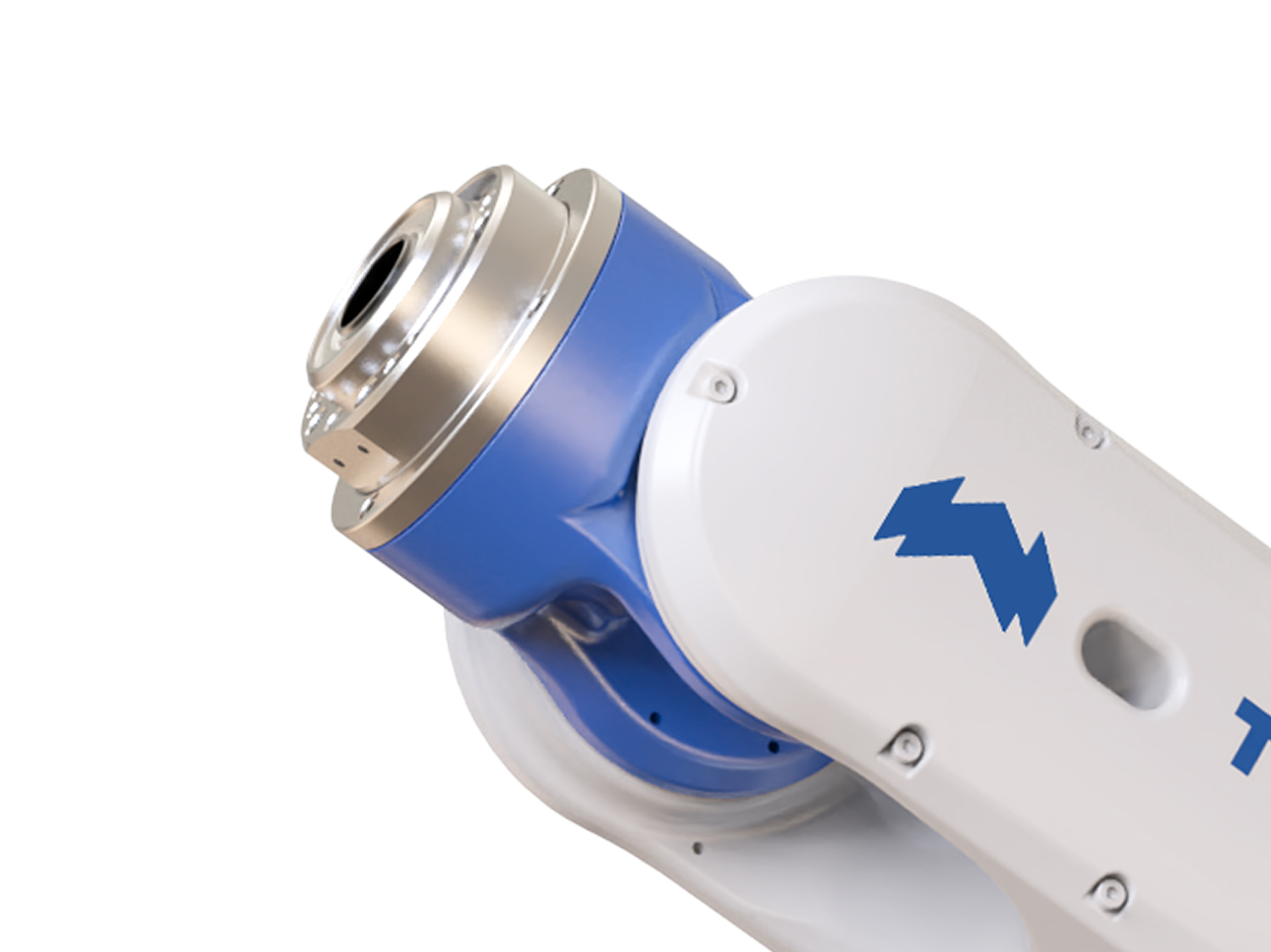

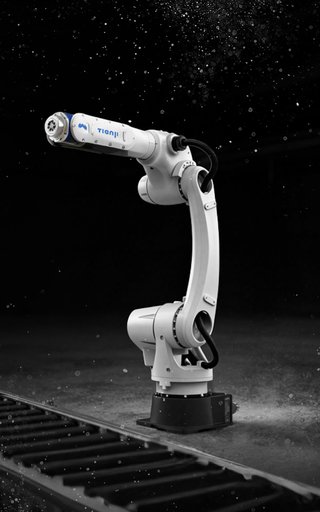

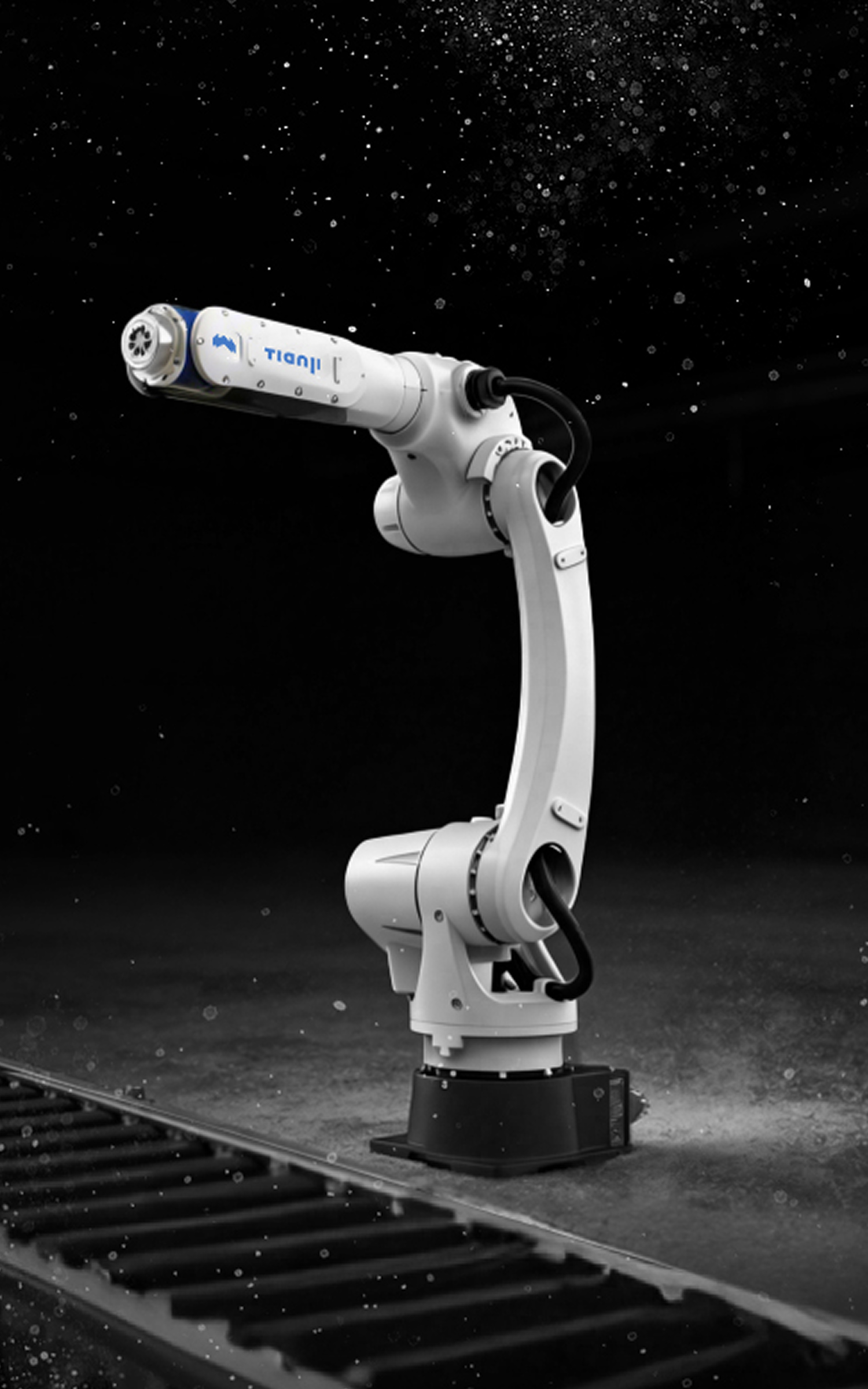

The EVO10L is a compact six-axis industrial robot built on Tianji's in-house motion-control system from Tianji. It handles 10 kg over a 1401 mm reach with ±0.03 mm repeatability, weighs 77 kg, and is rated IP67 for dust, damp and oil-mist environments. It can be floor, wall, tilt or ceiling mounted.
FUNKTIONEN
- 10 kg payload over 1401 mm reach
- ±0.03 mm repeatability
- IP67 protection rating
- 77 kg body weight
- Floor, wall, tilt or ceiling mounting
- Tianji in-house motion and force control system
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 77 kg |
|---|---|
| Traglast | 10 kg |
| Reichweite | 1.4 m |
| Wiederholgenauigkeit | ±0.03 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 77 kg |
|---|---|
| Traglast | 10 kg |
| Reichweite | 1.4 m |
| Wiederholgenauigkeit | ±0.03 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
Bilder
Bildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the EVO10L?
The EVO10L is a compact six-axis industrial robot built on Tianji's in-house motion-control system from Tianji. It handles 10 kg over a 1401 mm reach with ±0.03 mm repeatability, weighs 77 kg, and is rated IP67 for dust, damp and oil-mist environments. It can be floor, wall, tilt or ceiling mounted.
Who makes the EVO10L?
The EVO10L is made by Tianji Gento, a robotics company based in China.
How much does the EVO10L cost?
Tianji Gento has not publicly announced pricing for the EVO10L. You can enquire through RobotAIGeek for current pricing.
What is the EVO10L used for?
The EVO10L is designed for montage, materialhandhabung, and kommissionierung. It is used in automobilindustrie, elektronik, and fertigung settings.
What is the payload capacity of the EVO10L?
The EVO10L has a payload capacity of 10 kg and a reach of 1.4 m.
How much does the EVO10L weigh?
The EVO10L weighs 77 kg.
How many degrees of freedom does the EVO10L have?
The EVO10L has 6 degrees of freedom.
