説明
Robotic Bending CellはRSM MachineryのIndustrial-Robotです。 マシンテンディング、マテリアルハンドリング向けに設計されています。 主な数値：可搬質量 20 kg、リーチ 1780 mm、6 自由度。

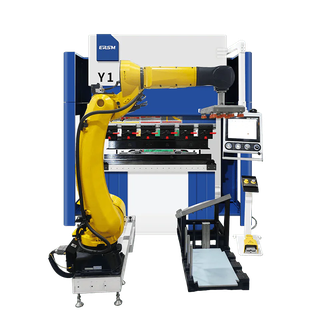

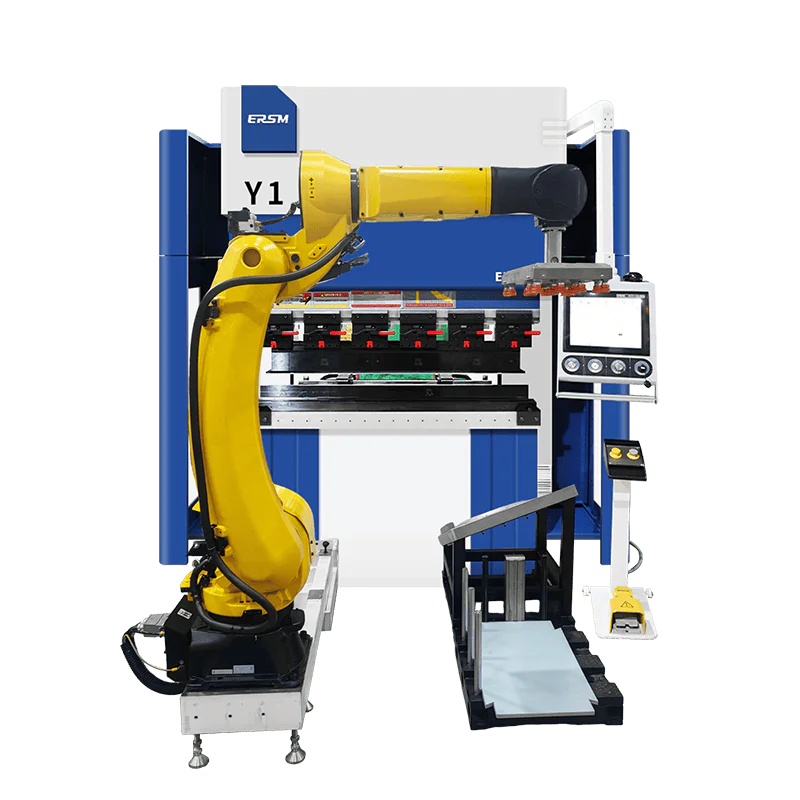

ERSM Robotic Bending Cell pairs a CNC press brake with a six-axis industrial arm for automatic sheet loading, alignment, bending, and stacking. Mobile cell layout with PLC/CNC motion control for high-mix and volume sheet-metal production.
特長
- Fully automatic robotic bending cell (ERSM / RSM Machinery). Six-axis arm integrated with CNC press brake and PLC motion control
- automates loading, alignment, bending, and stacking. Standard arm specs: max load 20 kg, max active radius 1780 mm, repeat positioning accuracy ±0.03 mm
- electric control cabinet with expandable multi-axis control
- teach pendant with USB
- ESTUN robot-specific high-performance servo

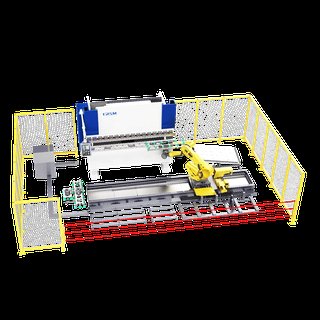

- optional ball positioning / visual centering. Cell includes flexible bending device, real-time CNC angle compensation, safety fencing/light-curtain capable layout. OEM also cites bending accuracy up to ±0.01 mm for the forming process.
技術仕様
検証済み| 本体 | |
| 可搬重量 | 20 kg |
|---|---|
| リーチ | 1.78 m |
| 繰り返し精度 | ±0.03 mm |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 6 |
技術仕様
検証済み| 本体 | |
| 可搬重量 | 20 kg |
|---|---|
| リーチ | 1.78 m |
| 繰り返し精度 | ±0.03 mm |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 6 |
画像
martti
martti投稿画像
動画
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the Robotic Bending Cell?
ERSM Robotic Bending Cell pairs a CNC press brake with a six-axis industrial arm for automatic sheet loading, alignment, bending, and stacking. Mobile cell layout with PLC/CNC motion control for high-mix and volume sheet-metal production.
Who makes the Robotic Bending Cell?
The Robotic Bending Cell is made by RSM Machinery, a robotics company based in China.
How much does the Robotic Bending Cell cost?
RSM Machinery has not publicly announced pricing for the Robotic Bending Cell. You can enquire through RobotAIGeek for current pricing.
What is the Robotic Bending Cell used for?
The Robotic Bending Cell is designed for マシンテンディング and マテリアルハンドリング. It is used in 製造 settings.
What is the payload capacity of the Robotic Bending Cell?
The Robotic Bending Cell has a payload capacity of 20 kg and a reach of 1.78 m.
How many degrees of freedom does the Robotic Bending Cell have?
The Robotic Bending Cell has 6 degrees of freedom.
