説明
Q2-400DはWesar IntelligenceのIndustrial-Robotです。 構内物流、マテリアルハンドリング向けに設計されています。 主な数値：93 kg、可搬質量 400 kg。

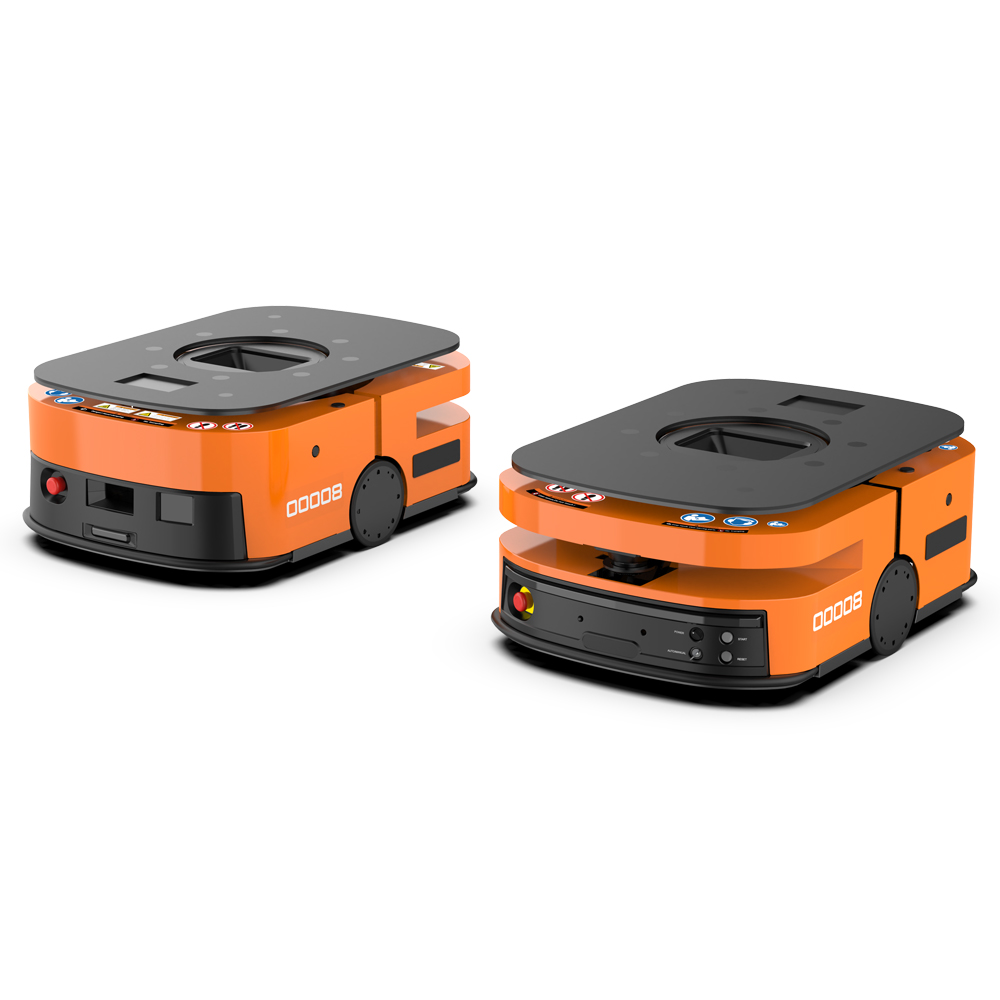

The Q2-400D is a compact Wesar backpack latent LMR rated at 400 kg for lighter under-rack and lifting-type factory logistics.
特長
- LMR backpack latent lifting type
- rated load 400 kg.. Rated load (kg): 400. Weight (kg): 93. Dimension (L × W × H) (mm): 780*545*300. Navigation mode: 20 barcode/L-SLAM /V-SLAM. Rated running speed (empty) (mm/s): 2000. Run time (h): 6-8. Charging time (h): ≤ 1.5. Lifting stroke (mm): 60. Human-machine interaction: Touchscreen. Safety: Sound and light alarm=Support
- Bumper strip=Support
- Emergency stop button=Support
技術仕様
検証済み| 本体 | |
| 重量 | 93 kg |
|---|---|
| 寸法 | L 780 mm × W 545 mm × H 300 mm |
| 可搬重量 | 400 kg |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 7.2 km/h |
技術仕様
検証済み| 本体 | |
| 重量 | 93 kg |
|---|---|
| 寸法 | L 780 mm × W 545 mm × H 300 mm |
| 可搬重量 | 400 kg |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 7.2 km/h |
画像
martti
投稿画像
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the Q2-400D?
The Q2-400D is a compact Wesar backpack latent LMR rated at 400 kg for lighter under-rack and lifting-type factory logistics.
Who makes the Q2-400D?
The Q2-400D is made by Wesar Intelligence, a robotics company based in China.
How much does the Q2-400D cost?
Wesar Intelligence has not publicly announced pricing for the Q2-400D. You can enquire through RobotAIGeek for current pricing.
What is the Q2-400D used for?
The Q2-400D is designed for 構内物流 and マテリアルハンドリング. It is used in 倉庫・物流 and 製造 settings.
What is the payload capacity of the Q2-400D?
The Q2-400D has a payload capacity of 400 kg.
How much does the Q2-400D weigh?
The Q2-400D weighs 93 kg.
How fast is the Q2-400D?
The Q2-400D can move at speeds of up to 7.2 km/h.
