説明
NJ-210-3.1 SHはComauのMobile-Robotsです。 ピッキング向けに設計されています。 主な数値：1415 kg、可搬質量 210 kg、リーチ 3151 mm、6 自由度。

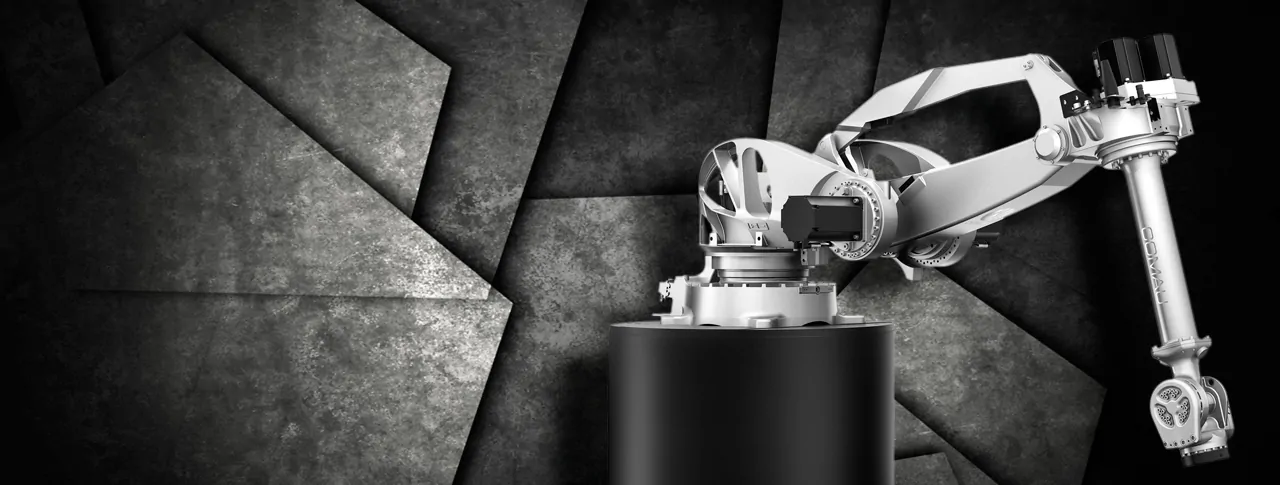

Comau's NJ-210-3.1 SH is a shelf-mounted six-axis industrial robot arm with a 210 kg wrist payload and 3.1 m horizontal reach, designed for spot welding and heavy handling in high-density production lines where mounting the arm on a shelf structure saves floor space.
特長
- Comau NJ-210-3.1 SH is a six-axis industrial robot for manufacturing, handling and welding duty, engineered for high uptime and a compact installed footprint.
- Technical specifications (Comau datasheet): maximum wrist payload 210 kg
- additional forearm load 25 kg
- maximum horizontal reach 3151 mm
- repeatability +/-0.1 mm
- robot weight 1415 kg
- 6 axes
- protection IP65 / IP67 Wrist
- mounting Shelf.
技術仕様
検証済み| 本体 | |
| 重量 | 1415 kg |
|---|---|
| 可搬重量 | 210 kg |
| リーチ | 3.15 m |
| 繰り返し精度 | ±0.1 mm |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 6 |
| マニピュレーション | 高 |
| 使用環境 | IP65 |
技術仕様
検証済み| 本体 | |
| 重量 | 1415 kg |
|---|---|
| 可搬重量 | 210 kg |
| リーチ | 3.15 m |
| 繰り返し精度 | ±0.1 mm |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 6 |
| マニピュレーション | 高 |
| 使用環境 | IP65 |
画像
martti
投稿画像
動画
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the NJ-210-3.1 SH?
Comau's NJ-210-3.1 SH is a shelf-mounted six-axis industrial robot arm with a 210 kg wrist payload and 3.1 m horizontal reach, designed for spot welding and heavy handling in high-density production lines where mounting the arm on a shelf structure saves floor space.
Who makes the NJ-210-3.1 SH?
The NJ-210-3.1 SH is made by Comau, a robotics company based in Italy.
How much does the NJ-210-3.1 SH cost?
Comau has not publicly announced pricing for the NJ-210-3.1 SH. You can enquire through RobotAIGeek for current pricing.
What is the NJ-210-3.1 SH used for?
The NJ-210-3.1 SH is designed for ピッキング. It is used in 製造 settings.
What is the payload capacity of the NJ-210-3.1 SH?
The NJ-210-3.1 SH has a payload capacity of 210 kg and a reach of 3.15 m.
How much does the NJ-210-3.1 SH weigh?
The NJ-210-3.1 SH weighs 1,415 kg.
How many degrees of freedom does the NJ-210-3.1 SH have?
The NJ-210-3.1 SH has 6 degrees of freedom.
