説明
Marvin M3S Long CCS-920はTianji GentoのCollaborative-Robotです。 組立、研究向けに設計されています。 主な数値：13.1 kg、可搬質量 3 kg、リーチ 920 mm、7 自由度。

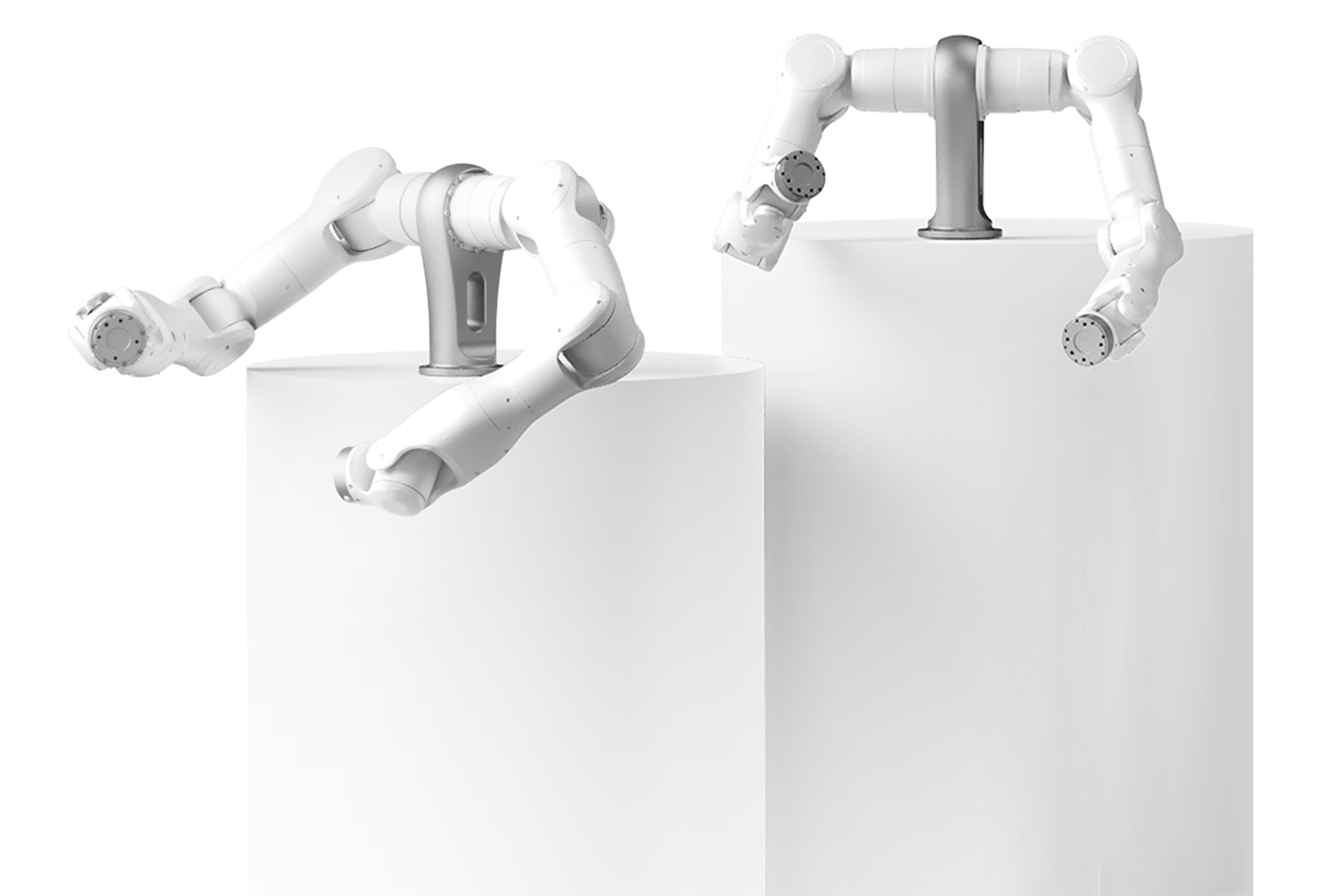

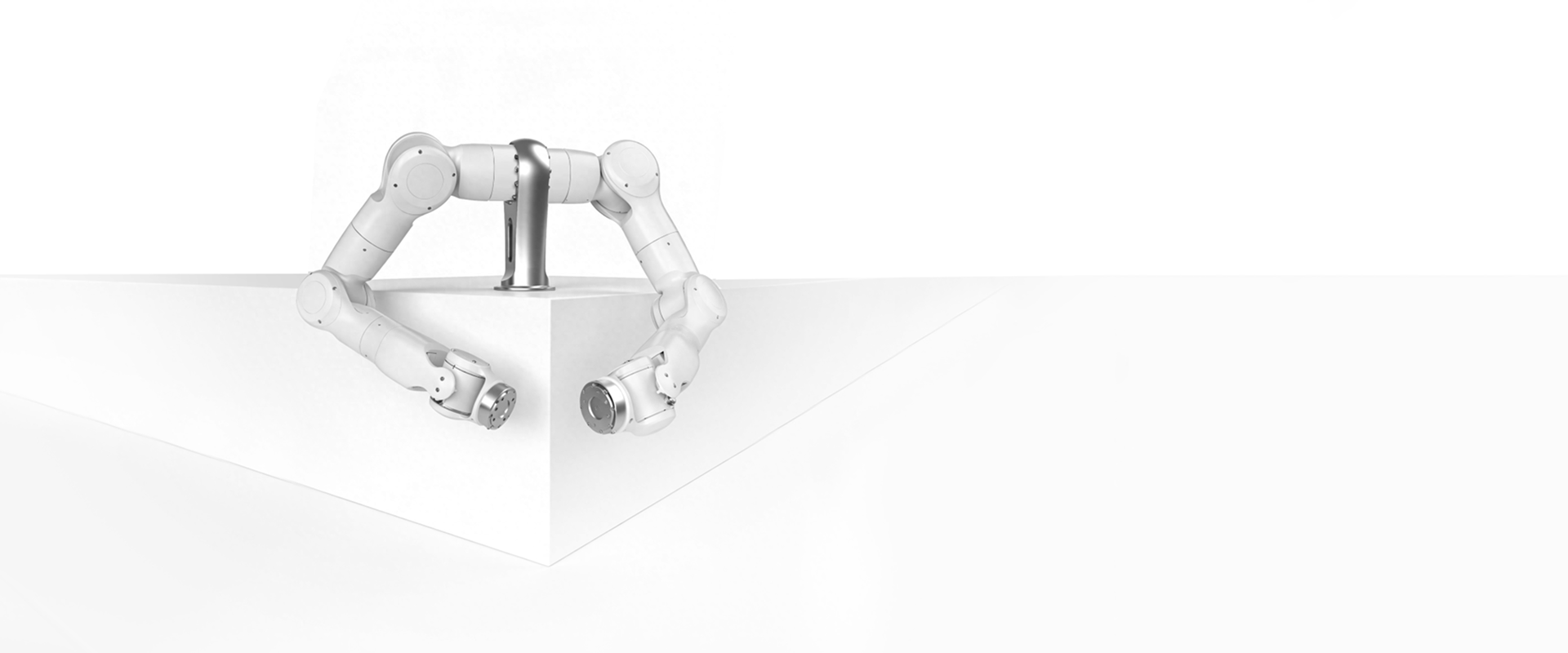

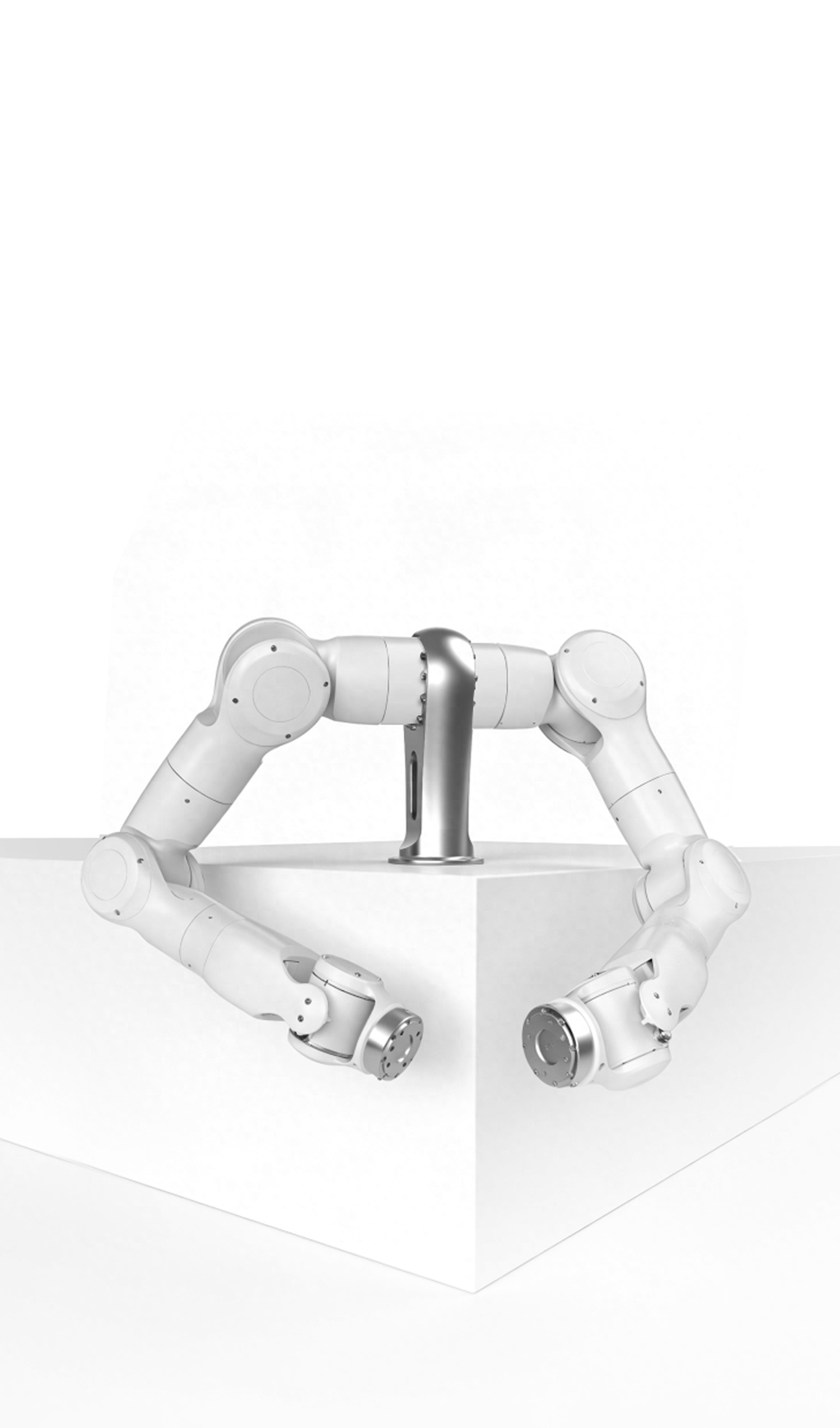

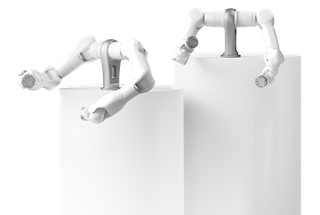

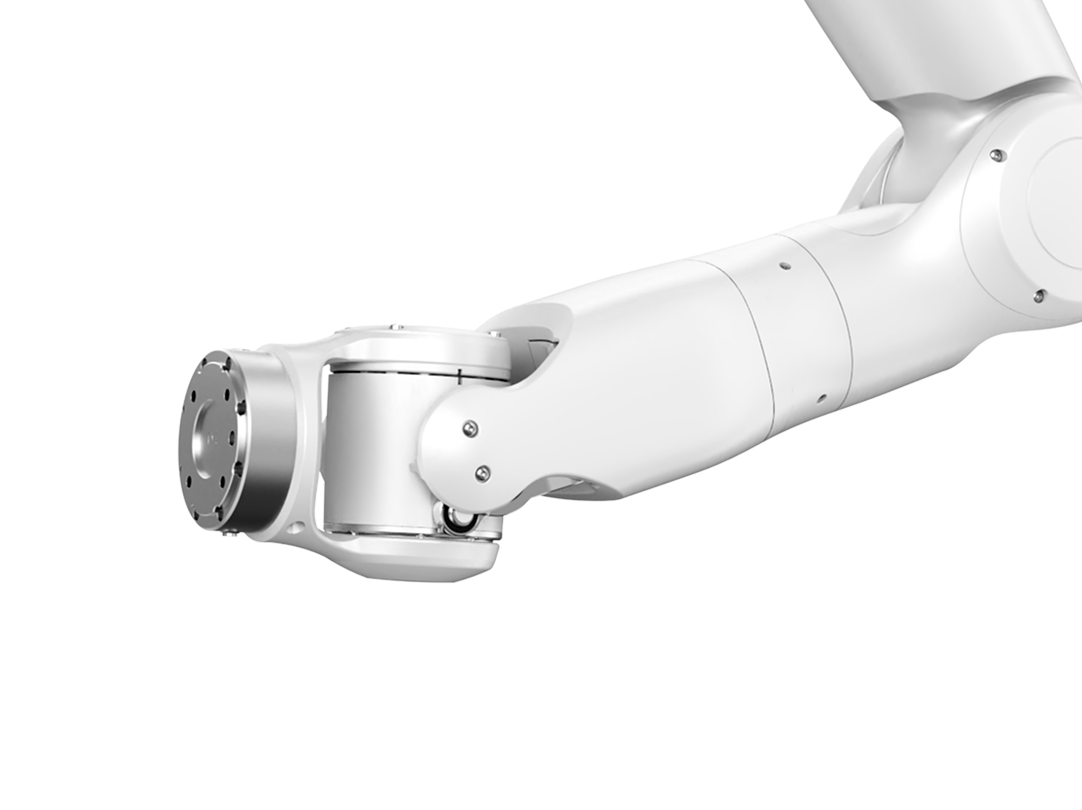

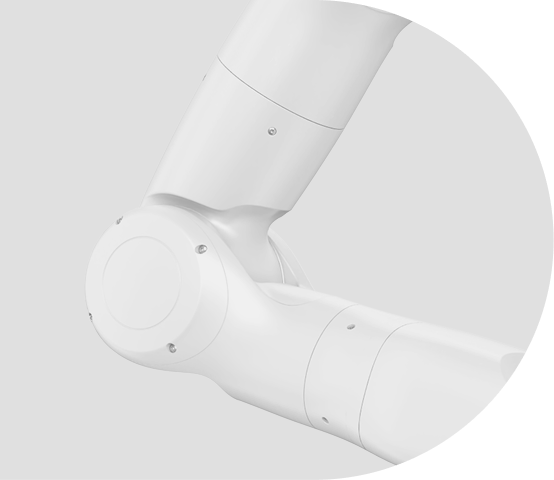

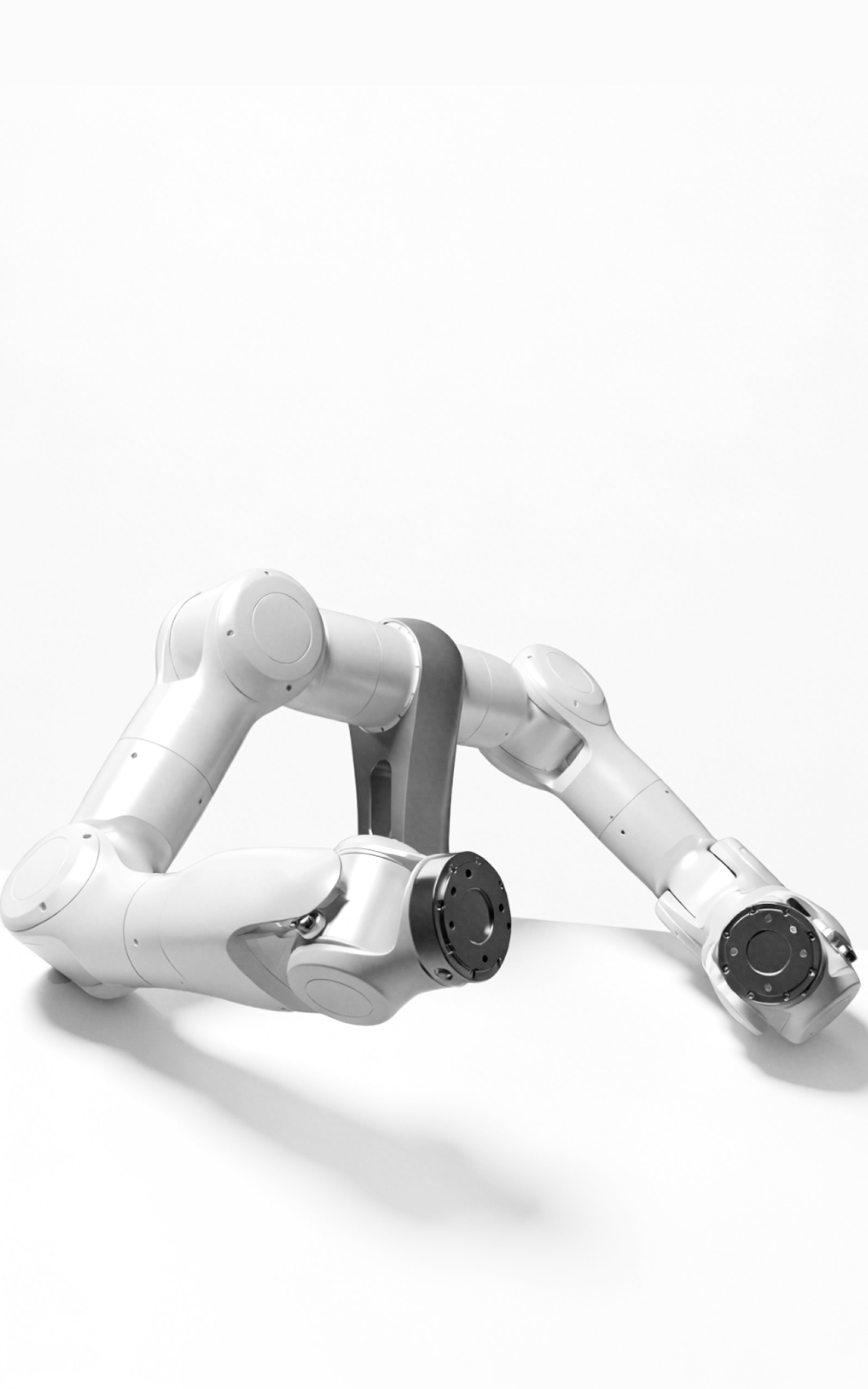

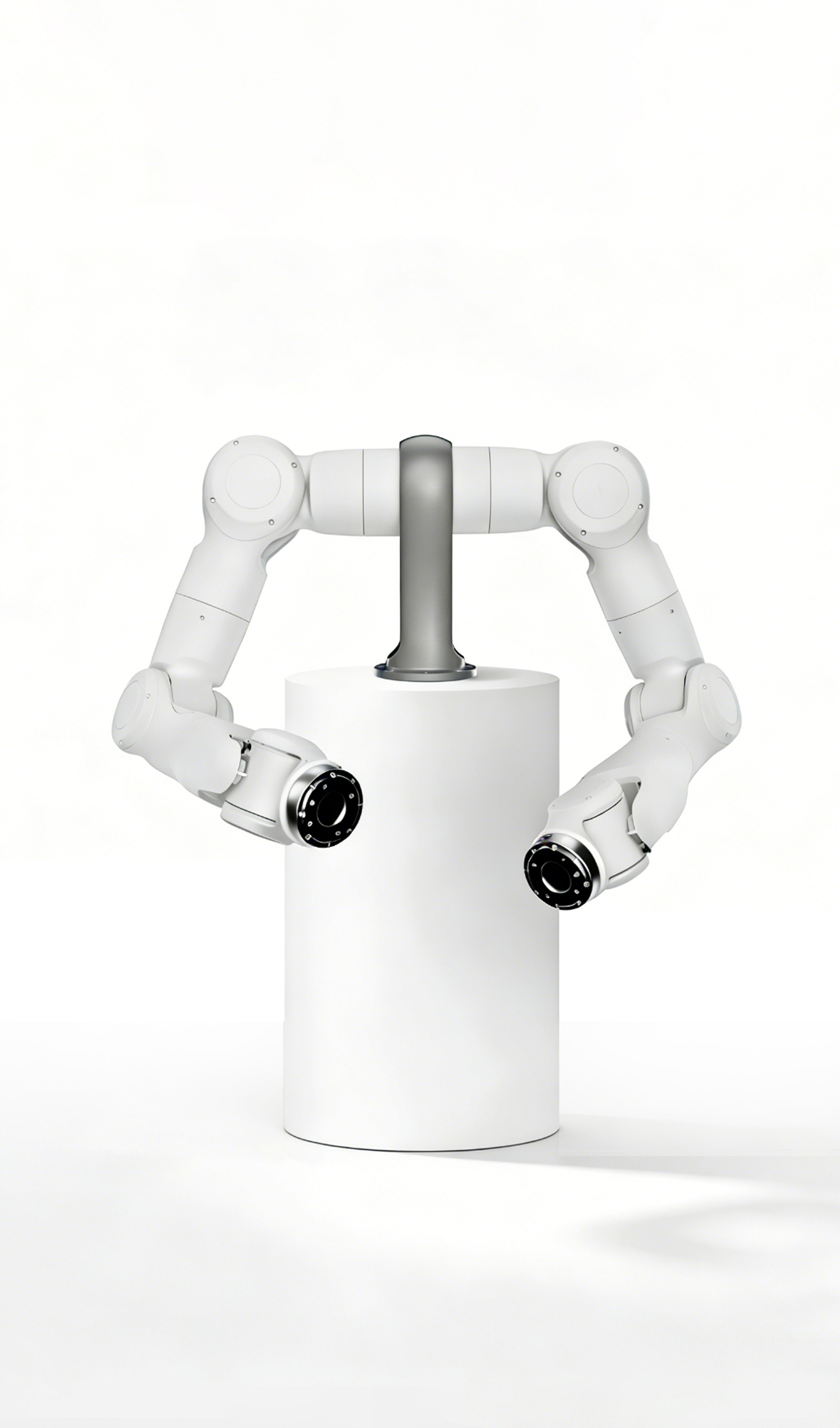

The Marvin M3S Long CCS-920 is a seven-axis force-controlled humanoid robot arm from Tianji, rated for 3 kg over a 920 mm working radius measured from the J2 axis to the end flange. Every joint carries a torque sensor as standard, giving force repeatability within 0.15 N, and the arm uses a cross-axis bionic wrist. At 13.1 kg per arm it reaches a 2 m/s TCP speed and repeats to ±0.04 mm.
特長
- Seven degrees of freedom, 3 kg rated payload
- 920 mm working radius from J2 to end flange
- Torque sensor on every joint as standard
- Force repeatability within 0.15 N

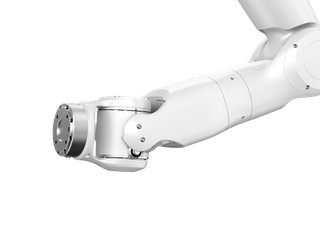

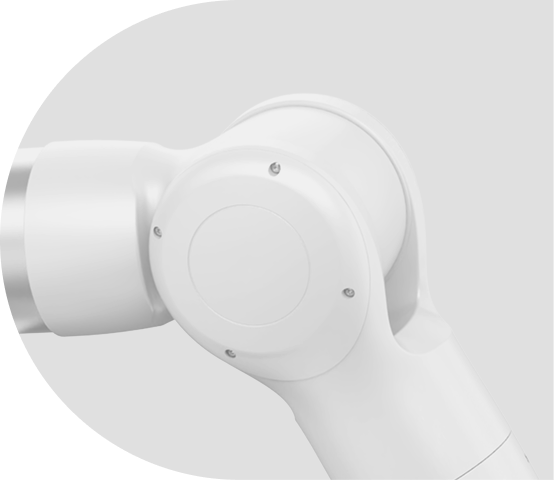

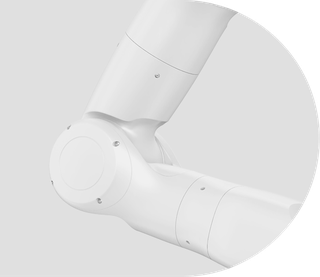

- Cross-axis bionic wrist
- Camera cabling can be routed inside to the end effector
技術仕様
| 本体 | |
| 重量 | 13.1 kg |
|---|---|
| 可搬重量 | 3 kg |
| リーチ | 920 mm |
| 繰り返し精度 | ±0.04 mm |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 7 |
| 速度 | 7.2 km/h |
技術仕様
| 本体 | |
| 重量 | 13.1 kg |
|---|---|
| 可搬重量 | 3 kg |
| リーチ | 920 mm |
| 繰り返し精度 | ±0.04 mm |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 7 |
| 速度 | 7.2 km/h |
画像
martti
martti
martti
martti
martti
martti投稿画像
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the Marvin M3S Long CCS-920?
The Marvin M3S Long CCS-920 is a seven-axis force-controlled humanoid robot arm from Tianji, rated for 3 kg over a 920 mm working radius measured from the J2 axis to the end flange. Every joint carries a torque sensor as standard, giving force repeatability within 0.15 N, and the arm uses a cross-axis bionic wrist.
Who makes the Marvin M3S Long CCS-920?
The Marvin M3S Long CCS-920 is made by Tianji Gento, a robotics company based in China.
How much does the Marvin M3S Long CCS-920 cost?
Tianji Gento has not publicly announced pricing for the Marvin M3S Long CCS-920. You can enquire through RobotAIGeek for current pricing.
What is the Marvin M3S Long CCS-920 used for?
The Marvin M3S Long CCS-920 is designed for 組立 and 研究. It is used in 自動車, エレクトロニクス, and 製造 settings.
What is the payload capacity of the Marvin M3S Long CCS-920?
The Marvin M3S Long CCS-920 has a payload capacity of 3 kg and a reach of 920 mm.
How much does the Marvin M3S Long CCS-920 weigh?
The Marvin M3S Long CCS-920 weighs 13.1 kg.
How fast is the Marvin M3S Long CCS-920?
The Marvin M3S Long CCS-920 can move at speeds of up to 7.2 km/h.
How many degrees of freedom does the Marvin M3S Long CCS-920 have?
The Marvin M3S Long CCS-920 has 7 degrees of freedom.
