説明

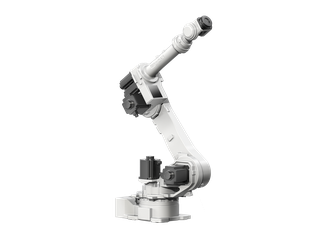

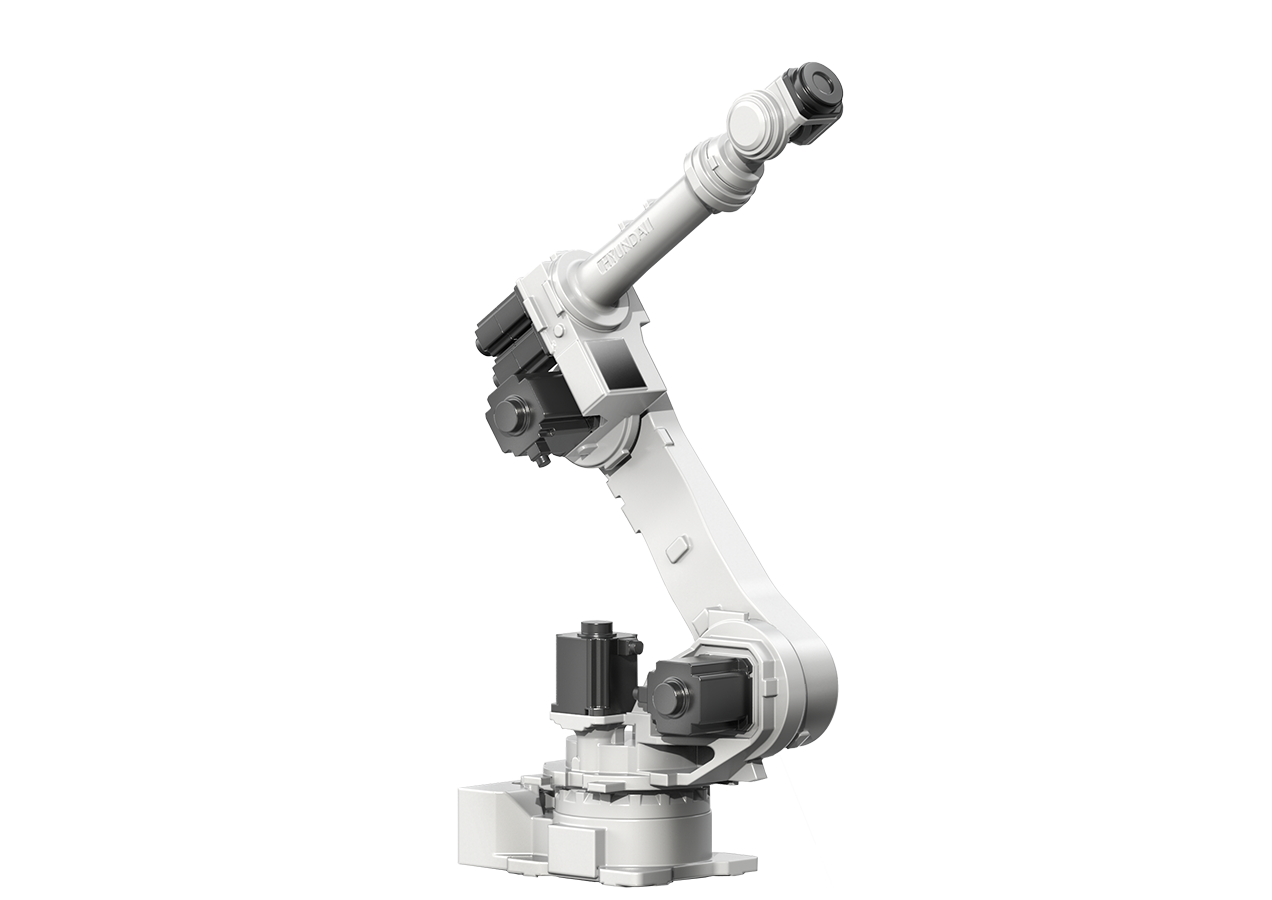

HDR80-22はHyundai RoboticsのIndustrial-Robotです。 組立、マシンテンディング、マテリアルハンドリング向けに設計されています。 主な数値：可搬質量 80 kg、リーチ 2239 mm、6 自由度。
HDR80-22 is a 6-axis industrial articulated robot manufactured by HD Hyundai Robotics. It has a rated payload of 80 kg and a maximum reach of 2239 mm, driven by AC Servo motors. Compatible controllers: Hi7-N00-60, Hi6-N00-60, Hi5a-S60. Previously designated YS080 before HD Hyundai's catalogue renaming.
特長
- 6-axis articulated configuration
- Rated payload 80 kg
- Maximum reach 2239 mm
- AC Servo drive
- Compatible controllers: Hi7-N00-60, Hi6-N00-60, Hi5a-S60
- Manufacturer-listed applications: assembly, handling, machine tending, spot welding
技術仕様
| 本体 | |
| 可搬重量 | 80 kg |
|---|---|
| リーチ | 2.24 m |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 6 |
技術仕様
| 本体 | |
| 可搬重量 | 80 kg |
|---|---|
| リーチ | 2.24 m |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 6 |
画像
martti
投稿画像
動画
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the HDR80-22?
HDR80-22 is a 6-axis industrial articulated robot manufactured by HD Hyundai Robotics. It has a rated payload of 80 kg and a maximum reach of 2239 mm, driven by AC Servo motors. Compatible controllers: Hi7-N00-60, Hi6-N00-60, Hi5a-S60. Previously designated YS080 before HD Hyundai's catalogue renaming.
Who makes the HDR80-22?
The HDR80-22 is made by Hyundai Robotics, a robotics company based in South Korea.
How much does the HDR80-22 cost?
Hyundai Robotics has not publicly announced pricing for the HDR80-22. You can enquire through RobotAIGeek for current pricing.
What is the HDR80-22 used for?
The HDR80-22 is designed for 組立, マシンテンディング, マテリアルハンドリング, and 溶接. It is used in 自動車 and 製造 settings.
What is the payload capacity of the HDR80-22?
The HDR80-22 has a payload capacity of 80 kg and a reach of 2.24 m.
How many degrees of freedom does the HDR80-22 have?
The HDR80-22 has 6 degrees of freedom.
