説明

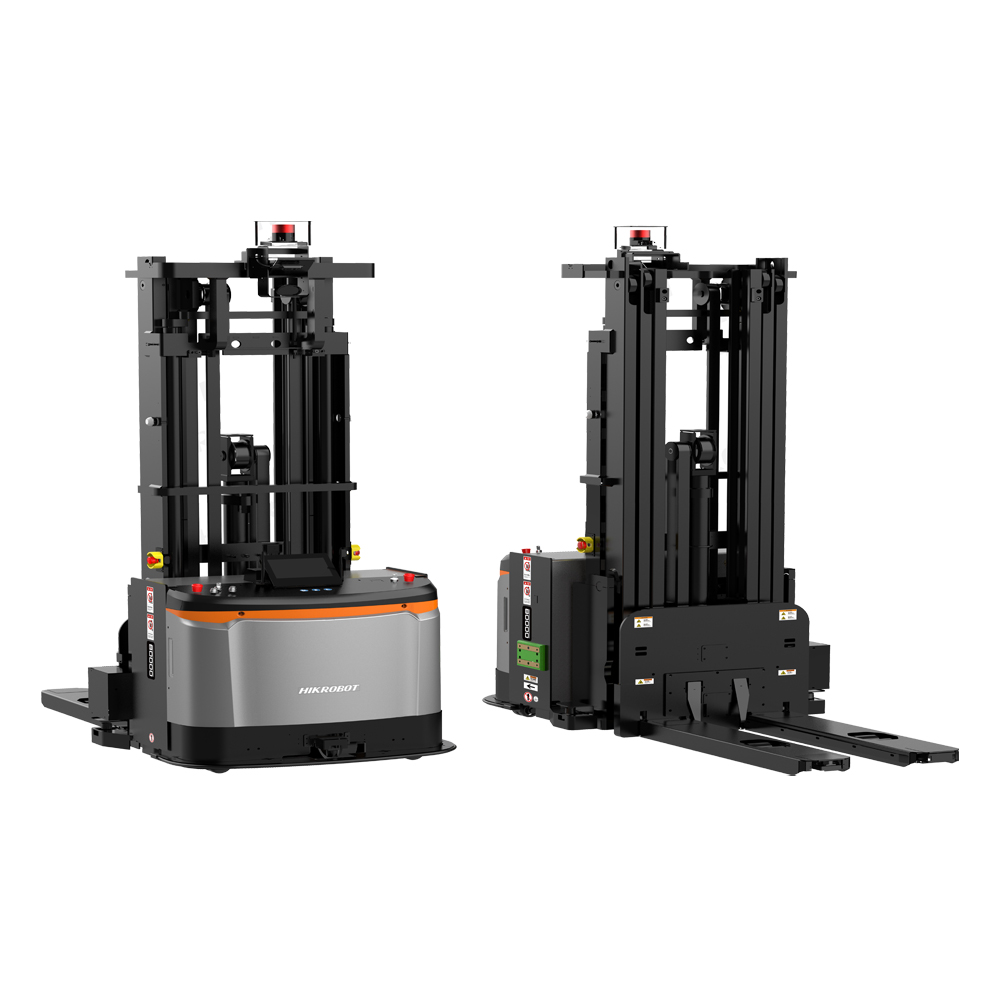

F4-3000 StackingはWesar IntelligenceのIndustrial-Robotです。 構内物流、マテリアルハンドリング向けに設計されています。 主な数値：1500 kg、可搬質量 3000 kg。
The F4-3000 stacking-series FMR (OEM froklift listing) provides 3000 kg rated load and 5500 mm lifting height for high pallet stacking in warehouses and photovoltaic/3C logistics.
特長
- FMR stacking series on /product/f4-3000a/
- rated load 3000 kg
- lift 5500 mm.. Rated Load (kg): 3000. Self-Weight (Including Battery)(kg): 1500. Dimensions (l1*b1*h1)(mm): 2378*1170*1983. Navigation Method: 3D Navigation / LSLAM / Vision Assistance. Movement Mode: Forward, Reverse, Arc Motion, In-Place Rotation. Rated Travel Speed (Unloaded) (m/s): 1.5. Operating Time Under Rated Conditions (h): 6~8. Charging Time After Full Discharge (h): ≤ 2. Lifting Height (h3+h13)(mm): 5500. Human-Machine Interaction: Touchscreen. Safety: Laser Obstacle Avoidance=Support
- Collision Strip Detection=Support
- Fork Collision Detection=Support
- Emergency Stop Button=Support
- Audio-Visual Alarm=Support
技術仕様
検証済み| 本体 | |
| 重量 | 1500 kg |
|---|---|
| 寸法 | L 2.38 m × W 1.17 m × H 1.98 m |
| 可搬重量 | 3000 kg |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 5.4 km/h |
技術仕様
検証済み| 本体 | |
| 重量 | 1500 kg |
|---|---|
| 寸法 | L 2.38 m × W 1.17 m × H 1.98 m |
| 可搬重量 | 3000 kg |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 5.4 km/h |
画像
martti
投稿画像
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the F4-3000 Stacking?
The F4-3000 stacking-series FMR (OEM froklift listing) provides 3000 kg rated load and 5500 mm lifting height for high pallet stacking in warehouses and photovoltaic/3C logistics.
Who makes the F4-3000 Stacking?
The F4-3000 Stacking is made by Wesar Intelligence, a robotics company based in China.
How much does the F4-3000 Stacking cost?
Wesar Intelligence has not publicly announced pricing for the F4-3000 Stacking. You can enquire through RobotAIGeek for current pricing.
What is the F4-3000 Stacking used for?
The F4-3000 Stacking is designed for 構内物流 and マテリアルハンドリング. It is used in 倉庫・物流 and 製造 settings.
What is the payload capacity of the F4-3000 Stacking?
The F4-3000 Stacking has a payload capacity of 3,000 kg.
How much does the F4-3000 Stacking weigh?
The F4-3000 Stacking weighs 1,500 kg.
How fast is the F4-3000 Stacking?
The F4-3000 Stacking can move at speeds of up to 5.4 km/h.
